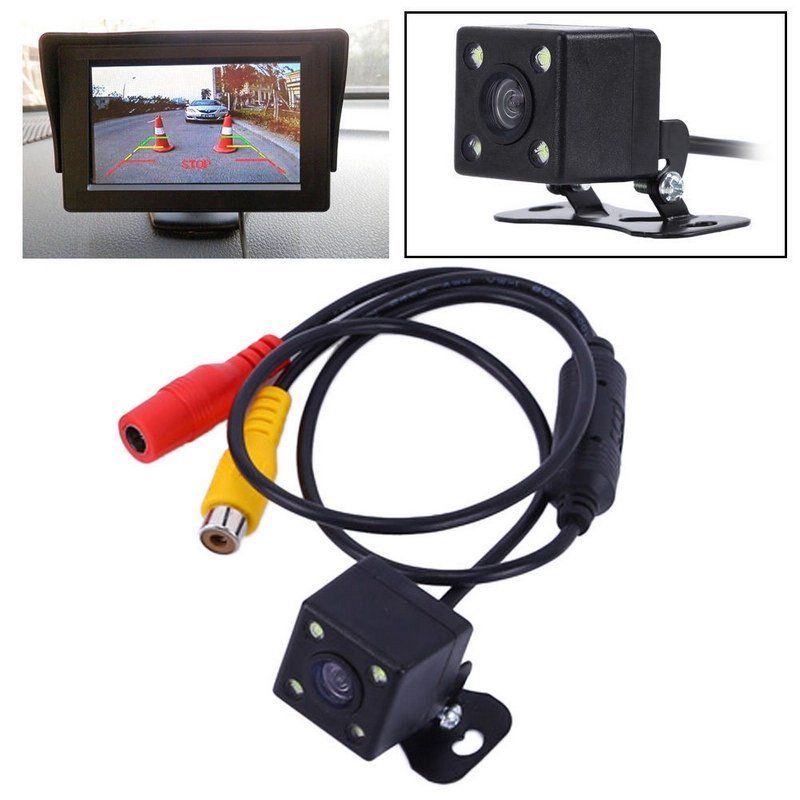

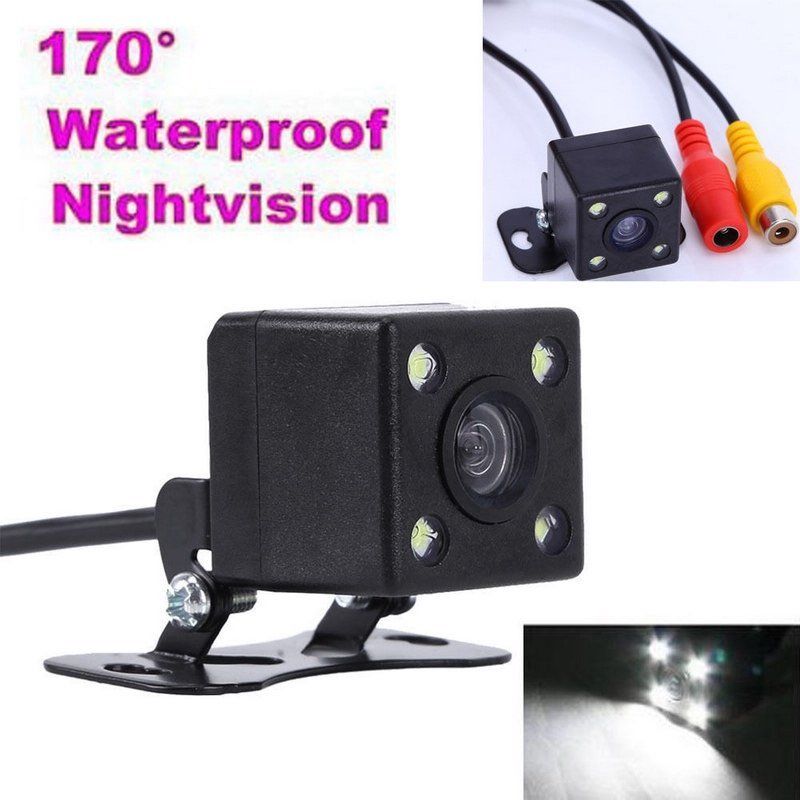

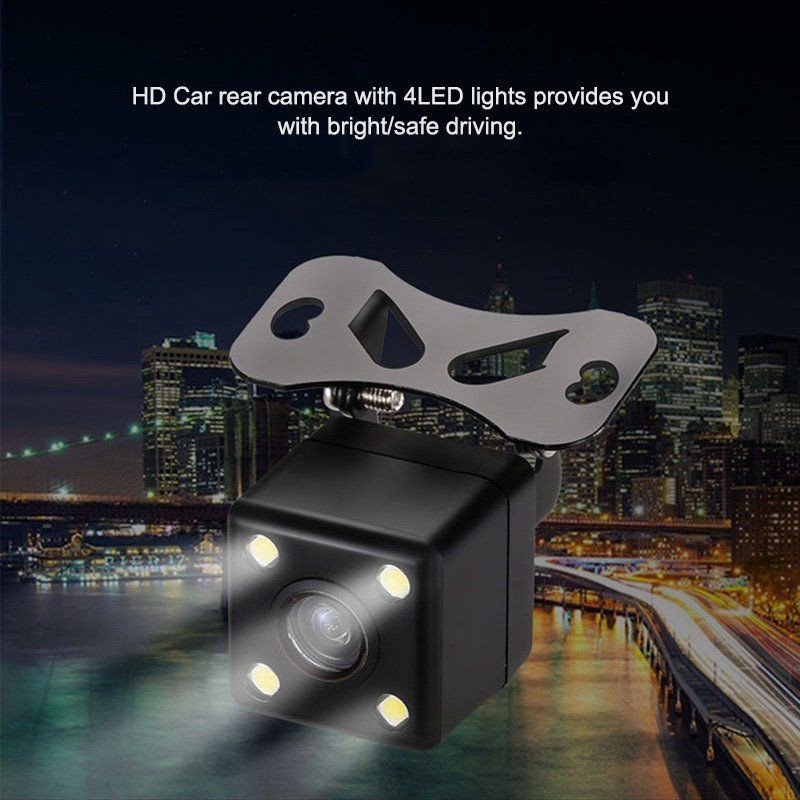

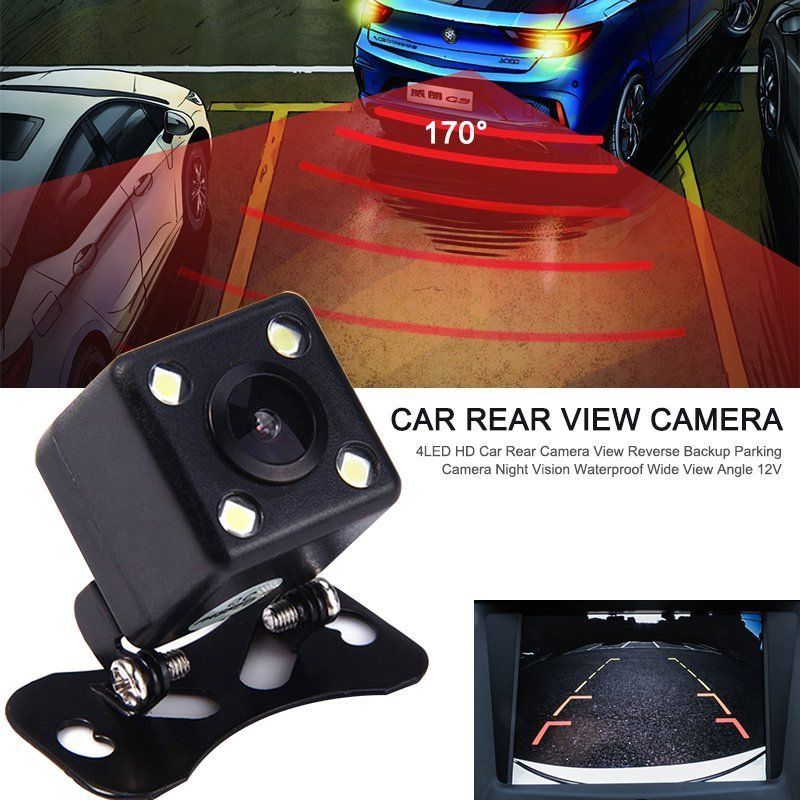

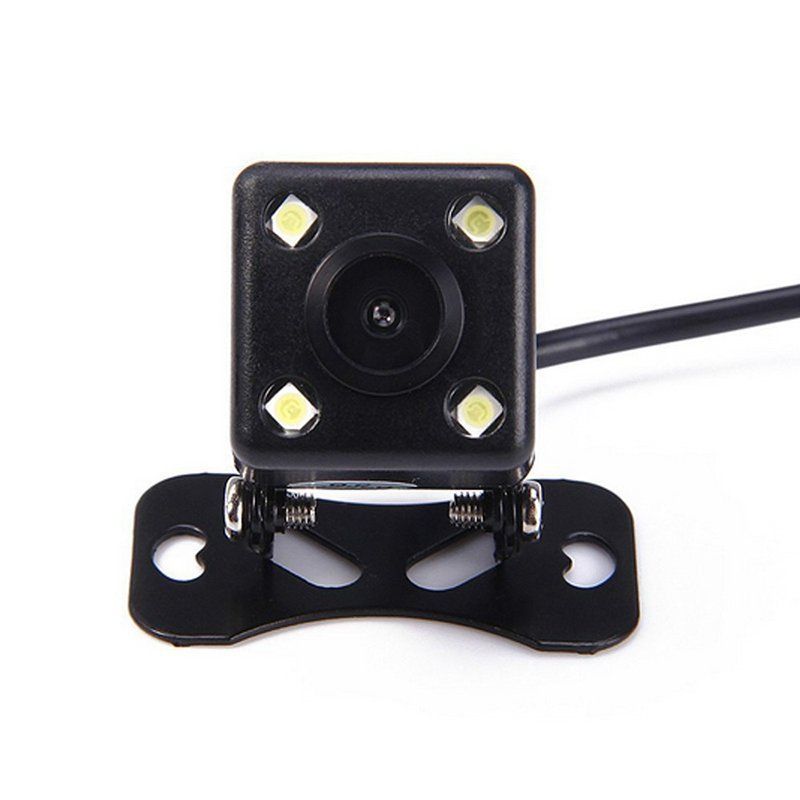

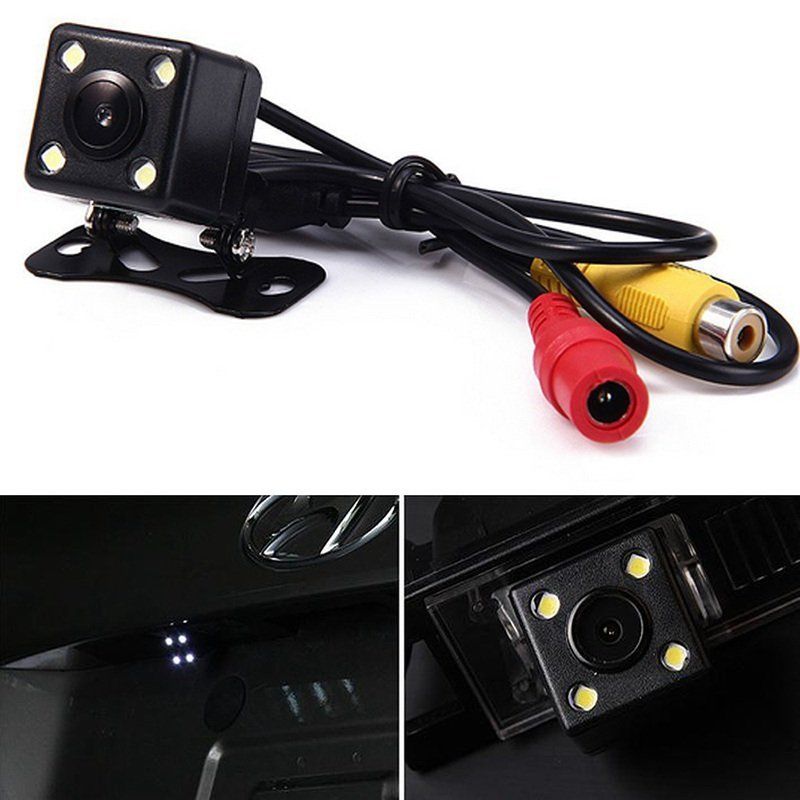

Features - Water-proof day/night Reversing camera - Easy installation for DIY usage - Real-time rear view while back up - IR Reverse camera with wide view angle 170°

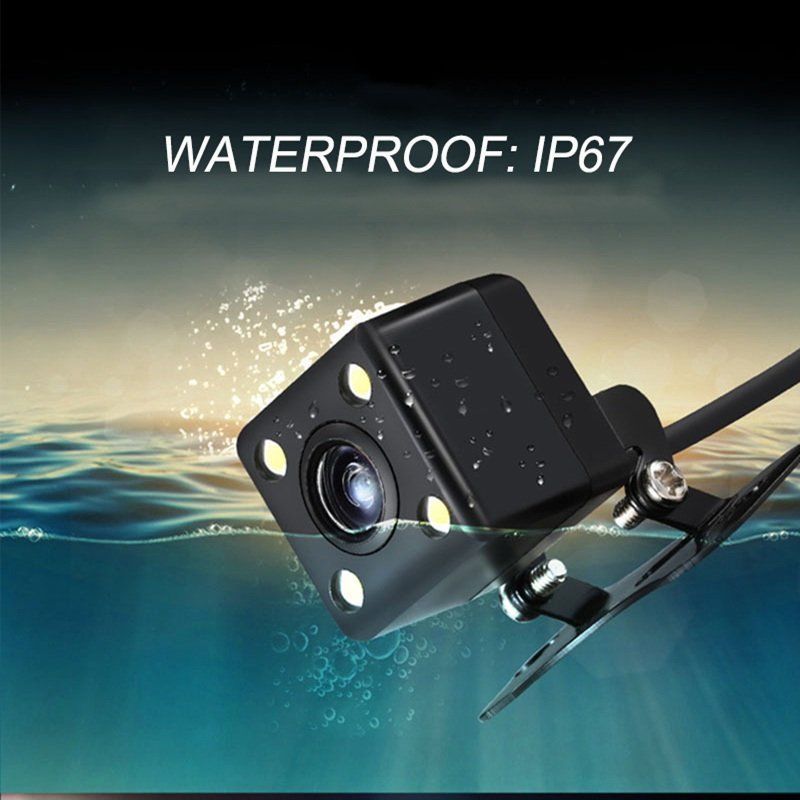

Specifications - Image device 1/4-inch colour - Infrared IR night vision - TV system PAL or NTSC - Resolution 420 TV lines - Electric Shutter PAL:625 Lines.25 Field /sec NTSC:720 Lines.25 Field/sec - Effective pixels PAL:720X 576 NTSC:720X 480 - Minimum illumination 0.3Lux - Viewing angle 170o - S/N ratio >48dB (AGC-OFF) - Video output RCA connector, 1.0vp-p, 75ohm - Current consumption ≤120mA - Power supply DC8V-12V - Operating temperature -30 to 65 degrees centigrade, RH95% Max. - Storage temperature -35 to 70 degrees centigrade, RH95% Max. - Other items automatic white balance, AGC and BLC - Water-proof Yes, to IP68 standard

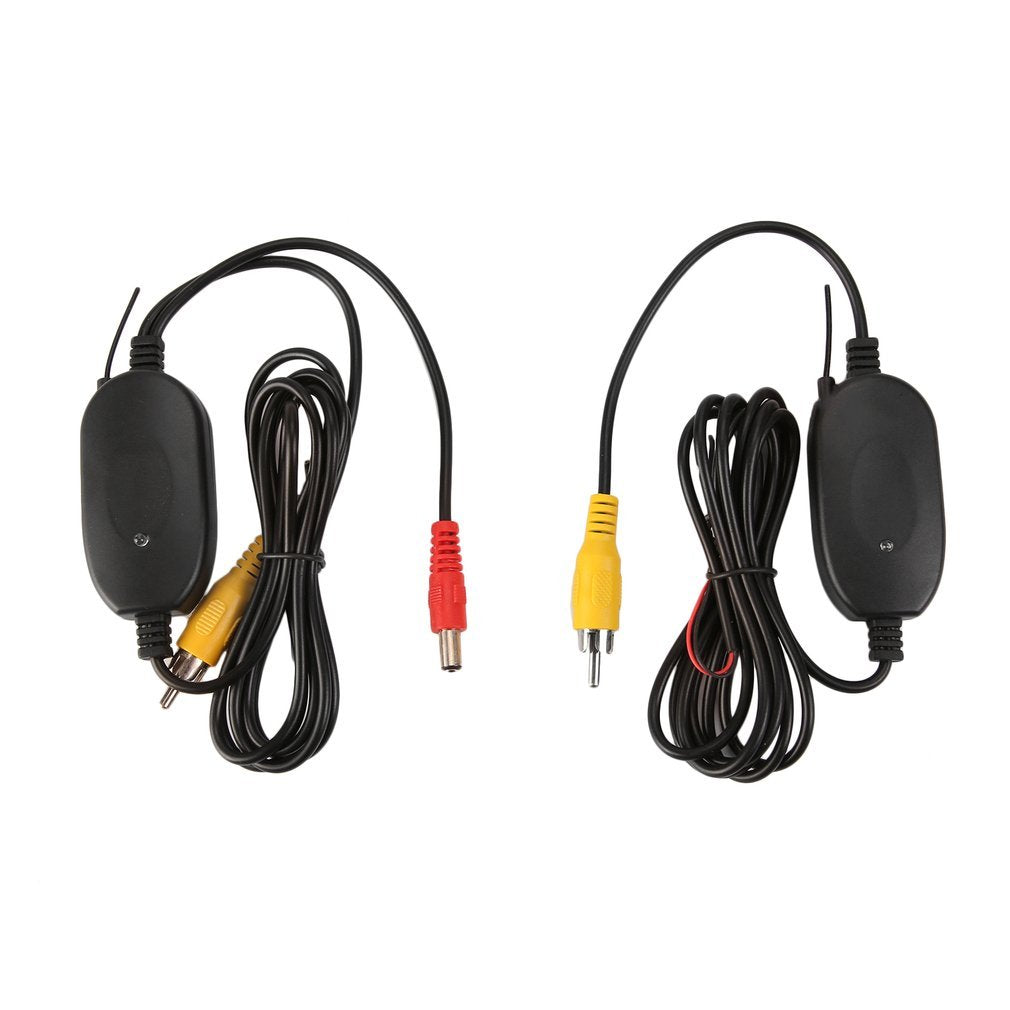

Transmitter/Receiver
- Take one minute get your camera become a wireless camera - Wireless 2.4GHz transmitter/receiver set (12-Volt for vehicle installation) - Work Range:Up to about 50m(Hollowness) - Connects to rear-view camera and front video screen - Fit all RCA composite video connections - Power:DC 12V - Transmitter/Receiver Cable Length:1.5m
Easy Installation
- Mount the camera to your car's license plate area, back window, or any other suitable place - Adjust the lens of the camera to its best position. - Connect power wire (red and black) to your vehicle DC 12V power system. - Connect the video output (yellow wire) of the camera to the display in your vehicle.
CAMERA size:4*2.5*3cm Package size:30.8*11*5.8cm
Package Content: 1 X Reversing camera 1 x Power cable for camera 1 x Transmitter 1 x Receiver
